Peugeot 307 horn intermittent not working

I bought this car in 2009 and it had the intermittent horn problem from the start, despite a 300 Euro "service". Bashing the airbag would get it to work but, next day, it would be as bad as before.

It turned out to be a very common Peugeot fault and it's easy to see why. The clever Peugeot designer has put a brass or bronze tab in contact with a "mazac" (zinc alloy) casting - a combination known to suffer from corrosion problems! My simple answer was to clean up the contact surfaces with a "needle" file then apply a generous coating of silicone grease to keep out moisture and oxygen. (It's REALLY important to use grease, otherwise this fix won't last.)

Fixing this horn is a really easy job and all you need is a flat-blade screwdriver (or a 3.5mm diameter rod), a needle file, sandpaper and a portion of silicone grease. (SatCure sells grease.) You can use petroleum jelly instead, but it may not be quite as reliable.

DISCLAIMER: The method used on this page is NOT recommended by Peugeot. It may cause problems with your airbag and could create other faults. However, it worked for me and it has worked for others. YOU USE THIS INFORMATION AT YOUR OWN RISK!

If you find this information useful, please link to it in your favourite forum.

The Peugeot has a very complex system that needs to be rebooted once the battery has been disconnected. Open the bonnet then proceed as follows:-

PROCEDURE FOR BATTERY DISCONNECTION

(Do this if you disconnect the Peugeot battery for ANY reason at all. Even if you are simply fitting a new battery. Also disconnect the battery if you need to charge it from a battery charger - and follow this procedure. If you get an electrical fault for no apparent reason, disconnect and reconnect the battery, following this procedure.)

Switch off all equipment, interior lights etc., and close the doors, leaving the driver's window open.

Switch off the ignition and remove the key.

Wait a full 3 minutes before disconnecting the battery.

The car's computer must be allowed to go to SLEEP i.e. into "power save mode". Do not operate any equipment on the car during this time. Remember, even opening the bonnet will wake the computer on a car fitted with alarm.

See below for battery reconnection procedure.

The Peugeot 307

Peugeot horn repair.

Disconnect the battery (-) negative terminal (rearmost). This is done simply by flicking up the lever and lifting off the entire connector.

Wait 30 minutes for the circuits to discharge. You don't want the airbag to explode in your face!

Before reconnecting battery, read instructions, below.

Find Peugeot spares on eBay

To remove the airbag and its plastic housing is simply a matter of pushing with a screwdriver. See below.

There's a hole behind each of the two steering wheel spokes.

You can see a tiny portion of the screwdriver blade (red arrow pointing up at left of photo). The idea is to push the wire spring to the right (blue arrow) - see below.

The green arrow points down at the offending brass connector!

Pressing gently with the screwdriver will cause the wire spring to release the plastic hook of the airbag housing. Do this at both sides.

(I'm showing you this with the Peugeot airbag housing already removed so you can understand what's happening, instead of poking around blindly as I did!)

I didn't find it necessary to disconnect the airbag. It hung out of the way anyway. But don't let it strain the connections.

Use the screwdriver to press down on the brass lug while you grip it with a pair of pliers and gently pull it out of the oblong hole in the metal casting.

Use a needle file to clean the surfaces of the oblong hole.

Then use it to clean the contact surfaces of the brass lug - especially the edges AND the inside of the hole in the metal casting - see below. (Thanks, Omar, for reminding me to stress this point!)

Apply silicone grease to the inside of the filed oblong hole and to the brass lug. Pull the U-shaped lug apart slightly to ensure a tight fit and push it into the oblong hole.

Press the airbag housing back into place in the steering wheel.

You must always carry out the following procedure to minimise the possibility of the computer corrupting its own software when reconnecting the car's battery supply.

Ensure the procedure for battery disconnection has been adhered to and, importantly, everything is switched off and the driver's window left down.

• Close all doors.
• Remove ignition key if left in ignition.
• Reconnect battery. DO NOT open any doors.
• Wait 10 seconds.
• Switch on headlights through the driver's window (you will hear a "bong").
• Switch on ignition then start the engine and check system functions.

NOTE: Upon reconnection, if anything (e.g. interior light) is switched on, it could screw up the computer. Check carefully.

Before reconnecting, clean up both lead battery terminals with sandpaper and apply a coat of silicone grease to them. Reconnect (-) negative terminal LAST.

Your horn should now work reliably and continue to do so.

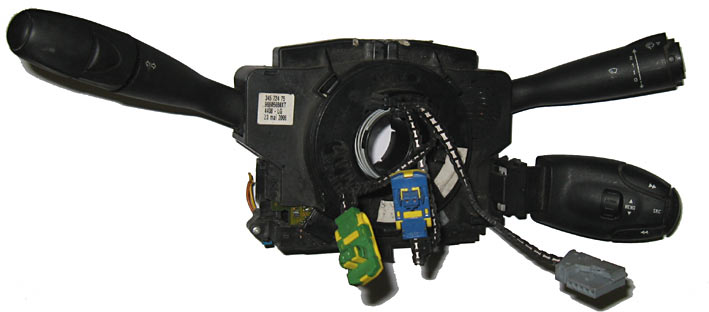

Below: the COM2000 module, complete.

Rarely, this can (allegedly) be the cause of a horn problem but please try the method above first.

Failure is usually caused by breakage of a ribbon cable. Unfortunately, this is not usually repairable so the entire unit must be replaced. Really poor design!

Left: the COM2000 Printed Circuit Board
